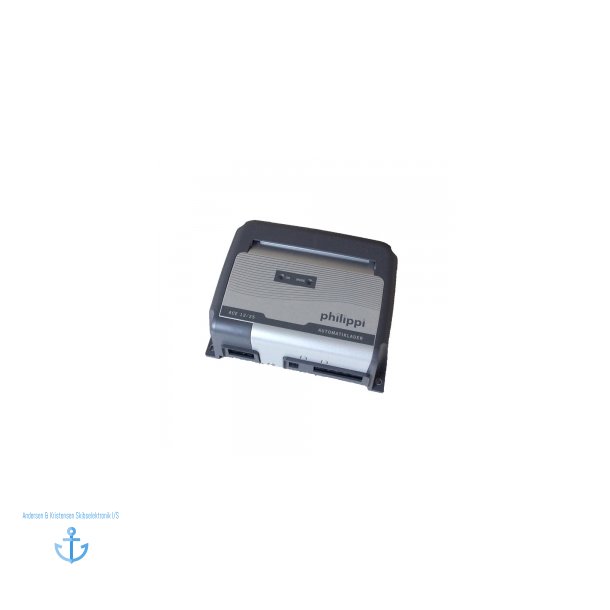

12V batterioplader med 3 udgange, total opladestrøm 40A, batterikapacitet 200-400 Ah. Ventilfri konvektion, køling op til + 55 ° C omgivelsestemperatur uden reduktion af udgang. Alle elektriske porte kan plugges.
Levering inkl. Strømkabel 1m, termistor 2,8m og DC-port tilslutningsstik.
Dimension: 298 x 195 x 106 mm
Vægt: 3,5 kg
Udvidelser:
• LED-fjernindikator F-ACE
• P-Bus Interface ACE-PBUS til integration i P-Bus (PSM-System Monitor)
• TFT 2,4 Display fjernbetjening CLM
• Integreret 3,5 "Display ACE-TFT (analog ACE 12/60
| ACE 12/25 | ACE 12/40 | ACE 12/60 | |
|---|---|---|---|
| Charging current | 25 A | 40 A | 60 A |
| Rated voltage | 12 V | 12 V | 12 V |
| Charge characteristics | 5–steps, IU, adjustable via DIP switches - factory setting: 14,4 V / 13,8 V , wintering mode, stabilized DC power supply, weekly refresh-function | ||
| Battery types | 7 different charging curves for open lead, GEL-, AGM-, tin-calcium-lead - batteries, lithium-battery-systems | ||
| Outputs | 3 | 3 | 3 |
| Recom. battery capacity | 120 - 250 Ah | 200 - 400 Ah | 300 - 600 Ah |
| Input- voltage range |
90 - 265 VAC | 90 - 265 VAC | 90 - 265 VAC |
| Frequency | 47 - 65 Hz | 47 - 65 Hz | 47 - 65 Hz |
| Efficiency factor | 90% typical | 90% typical | 90% typical |
| Full load consumption 230 / 115 V | 1,7 / 3,4 A | 2,7 / 5,6 A | 4,4 / 8,7 A |
| Weight | 2,1 kg | 3,5 kg | 3,5 kg |
| Dimensions L x W x H |
236 x 180 x 96 mm | 298 x 195 x 106 mm | 298 x 195 x 106 mm |
| Cooling | Natural cooling (without fan) |
Natural cooling (without fan) |
Electric fan (<50 dBa) |
| Operating temperature range |
From -20°C to +60°C, derating from 55°C | ||
| Protection class | IP 22 | IP 22 | IP 22 |
| Protections | Against short circuit and overvoltage (fuse) in all versions | ||
| Connectivity | PSM, FA-ACE through Interface |
PSM, FA-ACE through Interface |
PSM, FA-ACE |
Download manualer her:
>> Manual(FR/EN)
